Gauribidanur Telescope (GEETEE)
Aerial view of the East-West arm of the GEETEE
Since 1976, the Institute operates a decametre wave radio telescope jointly with the Raman Research Institute at Gauribidanur (Latitude:13.60° N; Longitude:77.44° E), about 100 km north of Bangalore. The GEETEE consists of 1000 dipoles arranged in a 'T' configuration, with a 1.4 km East-West arm and a 0.5 km South arm. It has been engaged in the study of radio waves at 34.5 MHz emanating from the Sun and various other diverse objects in the sky. The most notable observations with the array till date are: (i) first two-dimensional images of the radio emission associated with slowly varying discrete sources in the outer solar corona, (ii) all-sky survey of radio sources at 34.5 MHz in the declination range ~-30° S to 60° N, and (iii) low frequency carbon recombination lines in the astrophysical sources. Observations of gaseous remnants of exploding stars and the apparently vacant space between members of a cluster of galaxies have also been obtained. The main studies at present pertain to pulsars with a new and sensitive backend receiver. A small broadband array in the frequency range 35 - 70 MHz was also operated during mid 1980s at this Observatory.
Gauribidanur Radio heliograph (GRAPH)
A section of the South arm of the GRAPH
A radioheliograph to obtain two dimensional images of the solar corona simultaneously at different frequencies in the range 40 - 150 MHz is also functional here since 1997. The basic receiving element used is a log-periodic dipole (LPD), and the array consists 384 of them configured as 64 groups. The dipoles are arranged in a 'T' configuration similar to the GEETEE. The present spatial and temporal resolution of the GRAPH are ~3 arc min (@ 150 MHz) and ~256 msec, respectively. The array is in regular operation and the observing period is ~9 AM - 5 PM (03:30 - 11:30 UT), everyday. A 4096 channel digital correlator is used as the back end receiver to extract the strength and positional information of the radio emission from the solar corona and the various discrete structures there. The frequency coverage of GRAPH is unique that it provides useful information on the solar corona in the height range ~0.2 - 0.8 Rs above the solar surface (Rs = radius of the Sun = 696000 km), which at present is difficult to observe at other frequencies in the electromagnetic spectrum. No other radio telescopes, dedicated for solar observations, are presently operational in the above frequency range anywhere in the world. Some of the notable observations with GRAPH till date are: (i) density / temperature diagnostics of pre-event structure of a CME, (ii) velocity / acceleration of a CME close to the solar surface, (iii) 'true' speed of a CME in the three-dimensional space, (iv) estimation of the parameters of a CME at ~40 Rs from the Sun through angular broadening observations of a distant cosmic radio source, (v) seismology of the solar corona using radio burst emission as tracers, (vi) coronal electron density gradient in the height range ~0.2 - 0.8 Rs above the solar surface, and (vii) plasma characteristics of the radio emission associated with emerging magnetic flux from the sub-surface layers of the solar photosphere.
Gauribidanur Radio Interferometric Polarimeter (GRIP)

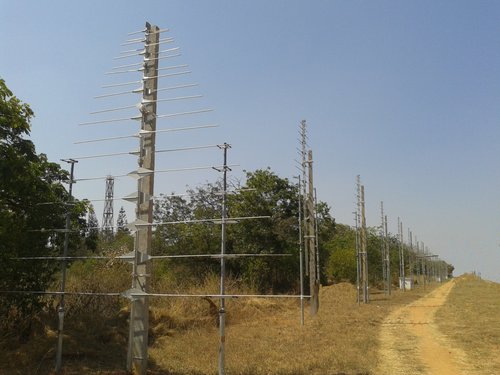

Based on the theoretical formulations for the response of a correlation interferometer to polarized radiation, an east-west one-dimensional array of 40 log periodic dipoles have been set up to probe the coronal magnetic field in the height range ~0.2 - 0.8 Rs, above the solar surface. The dipoles are arranged as 3 groups oriented at 0° & 90° with respect to the terrestrial north. This helps in capturing the polarization state of the incident radiation with good accuracy. The idea is to get information on the coronal magnetic field through observations of circularly polarized radio emission from the discrete sources in the corona. The spectral dependence of the observed emission in the above height range is derived through simultaneous multi-frequency observations.
Gauribidanur Low-frequency Solar Spectrograph (GLOSS)
A high resolution radio spectrograph is used in conjunction with the GRAPH for obtaining dynamic spectrum of the transient emission from the solar corona. The antenna system consists of 8 log periodic dipoles. Presently spectral information is obtained with an instantaneous bandwidth of ~250 KHz, and a temporal resolution is ~43 msec. The GLOSS and the GRAPH together provide spectral and positional information on eruptive solar activity, again an unique combination. The observations so far have provided clues to: (i) electron acceleration associated with small scale non-thermal energy releases in the solar atmosphere, (ii) occurrence of radio bursts associated with successive magneto hydrodynamic shocks in the solar corona, and (iii) source region of a CME through observations of transient 'absorption' bursts.
Gauribidanur Pulsar System (GAPS)
GAPS is a new facility for observations of Pulsars and other astrophysical transients at Low radio frequencies. A pulsar is a highly magnetized, rapidly rotating neutron star that is the core that remains after a massive star undergoes a supernova explosion. It emits beams of radiation from its magnetic poles, and these rotating beams of radiation are detectable whenever they intersect our line of sight, much like a lighthouse on the seashore. However, the exact mechanism behind the Pulsar emission is still being debated. Observations of Pulsars below 100 MHz are necessary to understand their emission mechanism, but such observations are limited.
GAPS operates in the frequency range of 50-80 MHz. It is an array of 16 Log-Periodic Dipole Antennas (LPDAs) on a North-South baseline with a spacing of 5 m between the adjacent antennas. At the back end, there is an FPGA-based digital spectrometer. This observing facility is a dedicated instrument with wide sky coverage, large bandwidth, and high time resolution, which are important for observing Pulsars, Radio bursts from the Sun, and other high-time resolution astrophysical phenomena like the FRBs (Fast Radio Bursts).
Mauritius Radio Telescope (MRT)
Aerial view of the East-West arm of the MRT
In addition to the above antenna arrays, a large synthesis telescope operating at 151.5 MHz was constructed in the early 1990s on the island of Mauritius (Latitude:20.14° S; Longitude:57.74° E) in collaboration with the University of Mauritius and the Raman Research Institute. The MRT is a 'T' shaped antenna array and simulates a dish antenna of ~2 km diameter. The primary goal was to make a radio map of the southern sky in the declination range ~-10° to -70° and generate a point source catalogue at 151.5 MHz. This will compliment the existing Cambridge 6C catalogue on radio sources in the northern hemisphere. An added advantage of the location is that a better study of the center of our Galaxy is possible since the latter lies almost overhead there. Observations of the Sun at 151.5 MHz with an angular resolution of ~2 arc min were also carried out with MRT. Scientists of IIA used the MRT & GRAPH jointly to investigate the plasma parameters associated with the electron acceleration in the aftermath of eruptive activity in the solar atmosphere.
Brazilian Decimetre Array (BDA)
A view of the BDA
The Instituto Nacional Pesquisas Espacias (INPE), Brazil is building a decimetre radio telescope for observations of the Sun and various galactic, extra-galactic radio sources. In its initial configuration, the BDA had 5 parabolic dish antennas of 4 m diameter each, set up as a one-dimensional array in the east-west direction. The frequency of operation is 1.6 GHz. The length of the longest baseline in the array is 216 m. The temporal and spatial resolution are ~100 msec and ~1.5 arc min respectively. The array is located at Cachoeira Paulista (Latitude:22.69° S; Longitude:45.01° W). The members of the solar radio astronomy group at IIA have contributed to the array configuration, software for data calibration and image synthesis. They have also designed and constructed the digital back end receiver for the telescope.
